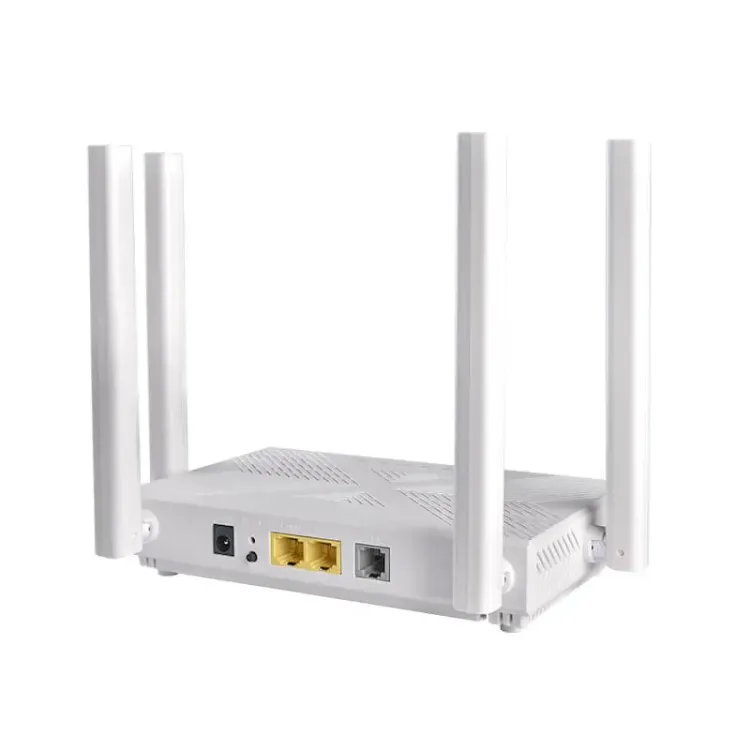

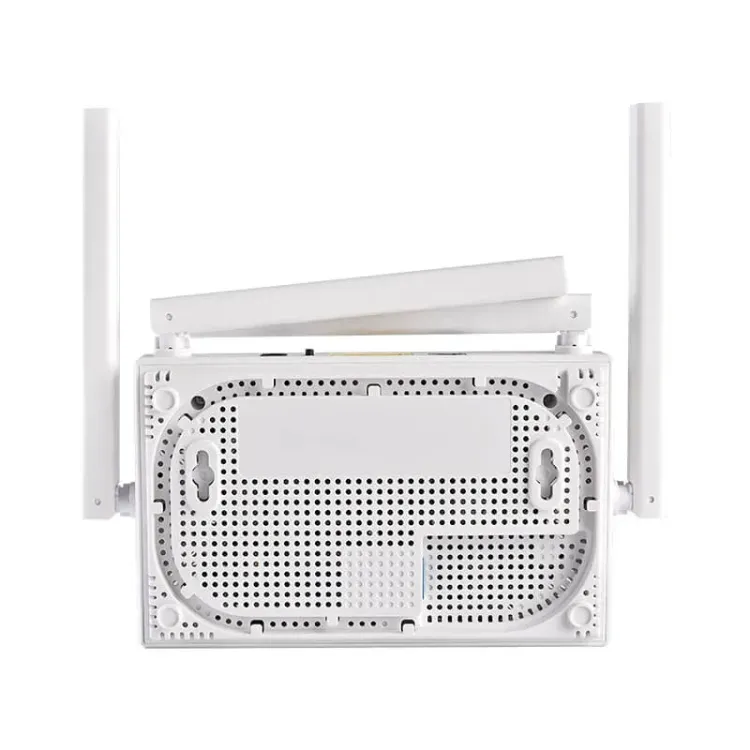

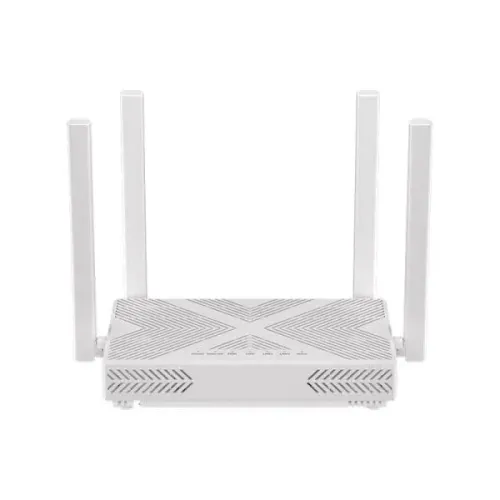

BTPON BT-G716AX XPON 2GE + WIFI6 AX1500 4 ANTENAS

Hardware Specifications

Size 170x105x31 mm

Interfaces 1xSC/APC XPON Port

2x10/100/1000Mbps LAN Ports

1xFXS Port

Buttons WPS/WiFi Button, Reset Button

Power Supply DC 12V 1A

Antenna 4x5dBi Antennas

GPON Standards ITU-T G.984.x

Distance 20Km Max

Data Rates Upstream: 1.25Gbps,Downstream:2.5Gbps

Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11n/b/g2.4 GHz

Signal Rate 5 GHz:1201 Mbps (802.11ax),

2.4 GHz: 300 Mbps (802.11n)

Operation Frequency 2.4GHz & 5GHz

Wireless Security WEP/WPA2/WPA2 Mix/WPA3/WPA3 Transition

VOlP Standards SIP(RFC3261), ITU-T G.729/G.722/G.711a/G.711

Software Features

WAN Type DynamicIP/Static IP/PPPoE

DHCP Server,Client,DHCP Client List,Address Reservation

Quality of Service WMM,Bandwidth Control

Port Forwarding Virtual Server,Port Triggering,UPnP,DMZ

VLAN 802.1Q tag VLAN,VLAN transparent mode/VLAN translation

mode/VLAN trunk mode

Access Control Parental Control,Local Management Control,Host List,Access Schedule,Rule Management

Firewall Security DoS,SPI Firewall

IP Address Filter/MACAddress Filter/Domain Filter

IP and MAC Address Binding

Management Access Control

Local Management

Remote Management

VOIP Features One RJ-11 FXS ports for connecting to analog telephones

Call forwarding,Call waiting,Call block,3-way conference call,etc.

Internet Protocol IPv4,IPv6

Environment

Operating Temperature 0℃~40℃(32°F~104°F)

Storage Temperature -40℃~70℃(-40°F~158°F)

Relative Humidity 10%~90%,non-condensing

10%~90%,non-condensing

5%~95%,non-condensing

Package Contents 1xXPON ONU

Installation Guide

1xPower Adapter

1x Ethernet Cable
