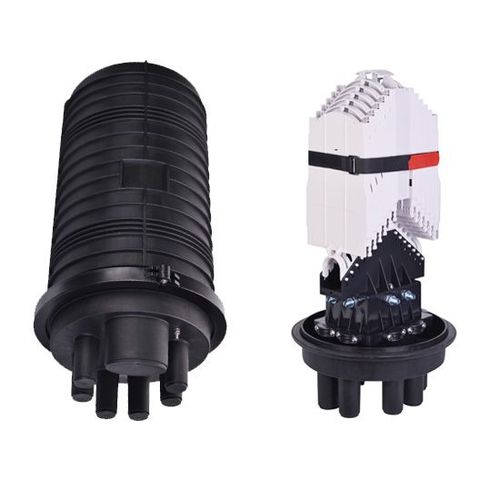

DOMO PARA FUSIONES, 288 Hilos,12 Hilos/Bandeja, 24 trays, max.288 Hilos, 17 ports (1 oval hole 10~30mm, 8 large round holes 6~21mm, 8 small round holes 6~16m); 504(H)x298(D)mm

Specification:

Model FAB-FOSC-BDH-H7
Type Dome type
Sealing Structure Heat shrinkable
Number of Inlet/Outlet ports 7 ports
Cable Diameter 1 portsx38mm; 6 portsx25mm
Maximum Capacity Bunchy: 288 fibers;
Ribbon: 864 fiber
Capacity per Splice Tray Bunchy: single layer: 12 fibers; dual layers: 24 fibers;
Ribbon: 3pcs.; max.: 6pcs
Quantity of Splice Tray 12pcs
Body Material PC
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 515(H)×310(D)mm
Net Weight 3.2~4.2KG
Temperature -40℃~65℃
